INDUSTRIAL RADIOLOGY FILM VIEWERS

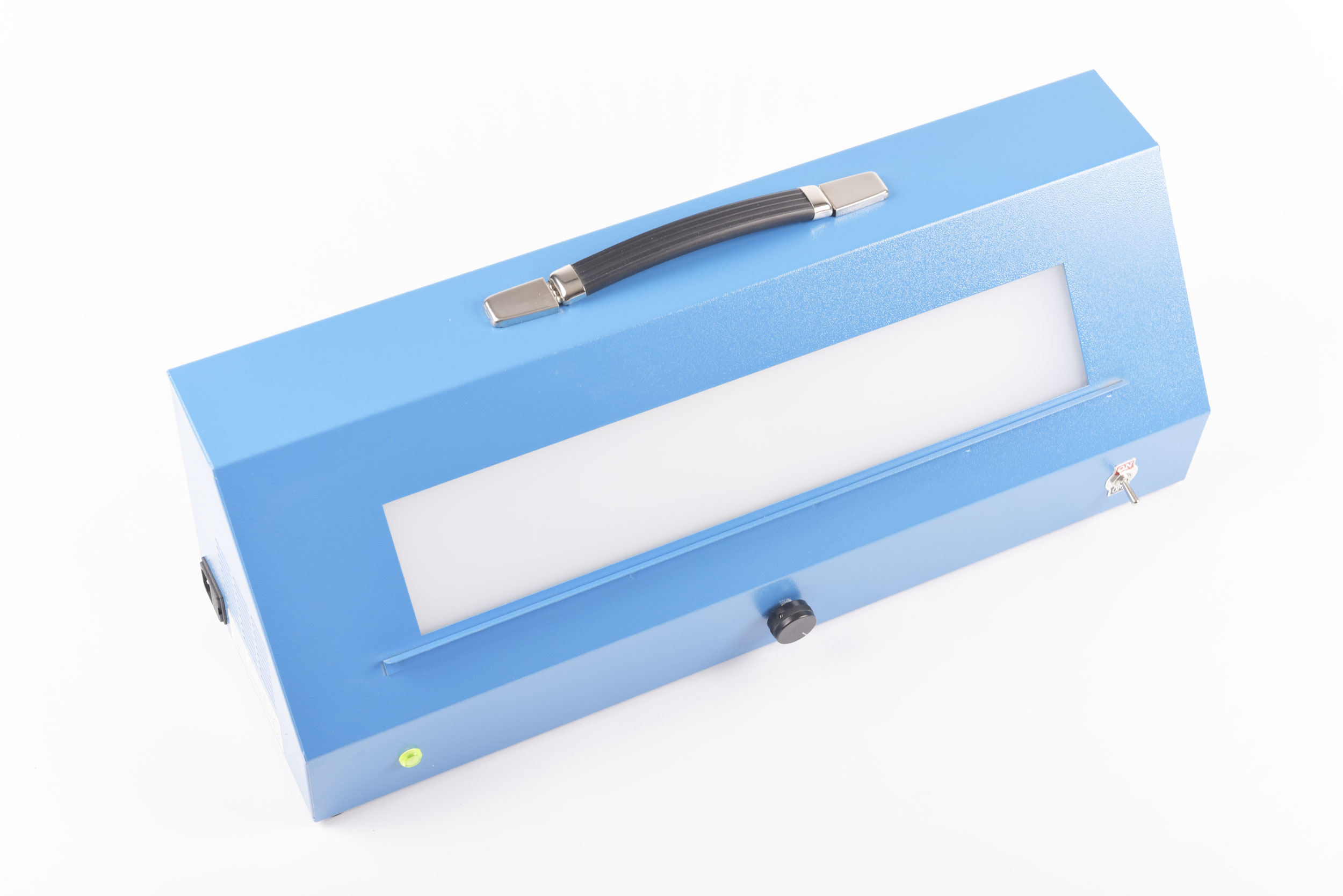

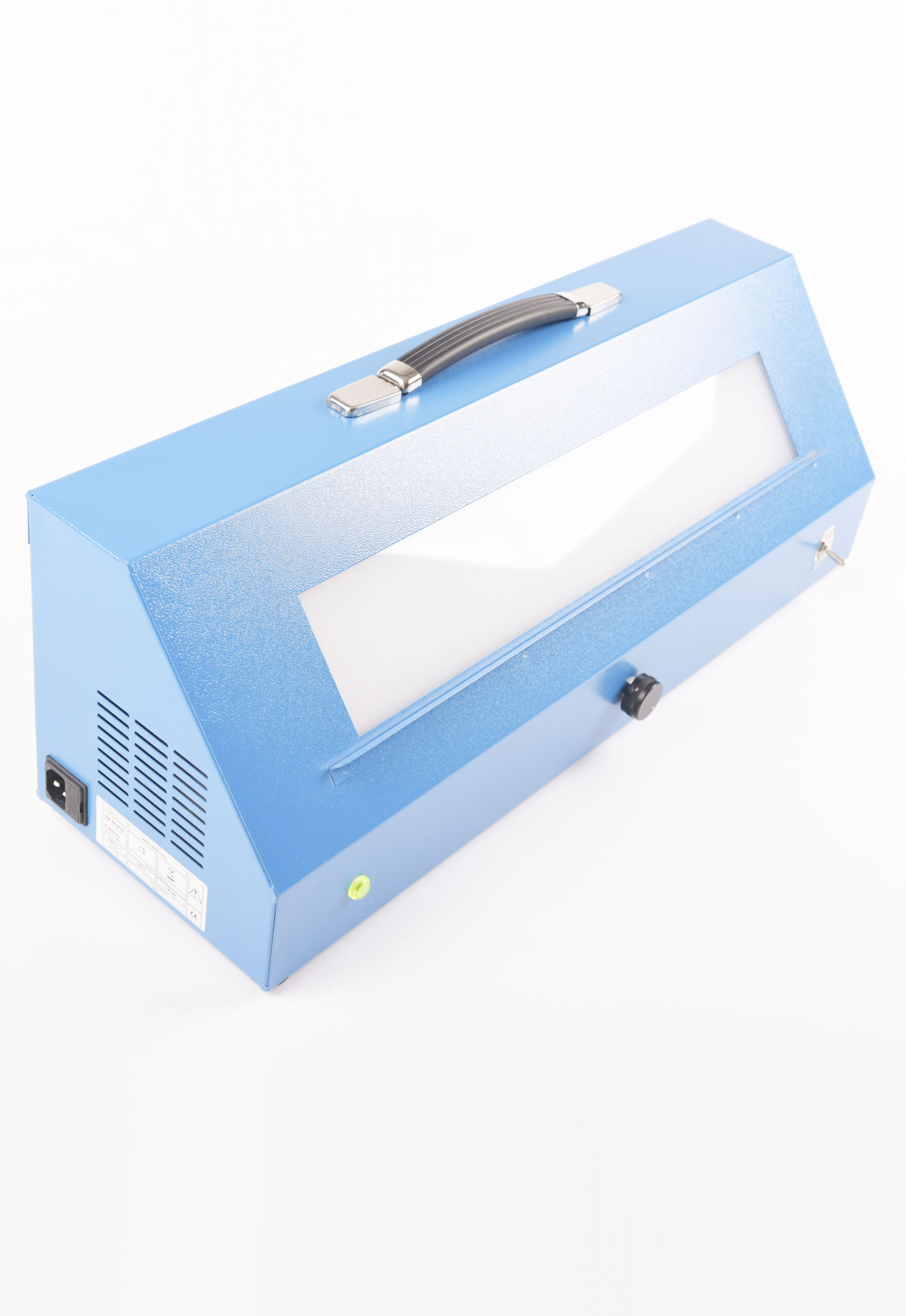

LED X-ray film viewer for industrial radiology.

Structure in oven enameled steel sheet, with reading surface in opal material;
Possibility to adjust the luminance and control the ignition by pedal;
Duration of the luminating elements greater than 30,000 hours.

Contact us for more information

SKU: M-CB Category: INDUSTRIAL RADIOLOGY FILM VIEWERS

LED X-ray film viewer for industrial radiology.

Structure in oven enameled steel sheet, with reading surface in opal material;
Possibility to adjust the luminance and control the ignition by pedal;
Duration of the luminating elements greater than 30,000 hours.

Characteristics

Code	Format	External dimensions	Light sections	Density
M-CB-20	cm 10 x 24	cm 38 x 19,5 x 21	1 – 10 x 24	3,9
M-CB-22	cm 10 x 48	cm 62 x 19,5 x 21	1 – 10 x 48	3,9

All models are accompanied by the following documentation: EC declaration of conformity, installation and maintenance instructions, wiring diagram.

Technical data

Characteristics	UM	M-CB-20 values	M-CB-22 values
Nominal tension	V ~	230	230
Maximum power	W	77	136
Frequency	Hz	50	50
Fuses	I	5 x 20 T 400 mA L 250	5 x 20 T 400 mA L 250
Isolation class		I	I
Laser product in class		2	2
Noise less than	dBA	85	85
Usage temperature range	°C	10 – 40	10 – 40
Relative humidity Max	Rh	80%	80%
Altitude	M	2000	2000
Temperature color	°K	6000	6000
External dimensions	cm	38 x 19,5 x 21 h	62 x 19,5 x 21 h
Pedal cable length	cm	265	265
Weight	kg	6,5	10,5
Protection index	IP	20	20
Color	Ral	5012	5012
